Overhead Cranes | Lifting Systems - Pakistan

We deal in overhead cranes such as single girder overhead crane, double girder crane, jib crane, slewing crane, gantry crane, semi-gantry crane, portable gantry crane, manual single girder crane, manual double girder crane, manual gantry crane, underhung crane, monorail crane, curved track crane system, free standing crane system and light weight crane system.We also provide the overhead crane components, electric wire rope hoist, electric chain hoist, chain blocks, festoon system, high tro reel system, busbar system, end carriages, end carriage motors and overhead crane lifting attachments.The overhead cranes also called electrical overhead travelling cranes or EOT cranes. We specialize in Design, Manufacturing, Installation and Maintenance of overhead cranes. We follow the CMAA & ASME standards for the Design, Manufacturing, Installation and Maintenance of overhead crane. Overhead cranes are of different duties ranging from 1 hour operating time to 24 hours with variable & constant load conditions. We know your requirements according to your process and nature of work. We provide Chinese crane or European crane according to client requirements.

Single Girder Overhead Crane

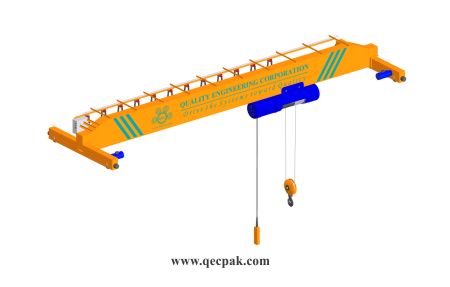

The single girder crane consists of single girder fitted on two end carriages. The end carriages are fitted with wheels that travel on the rail by manual chain or by electric motors. The electric wire rope hoist or electric chain hoist or manual chain block is under hung on the bridge. The hoist reeving is 2/1 or 4/1 depending on the duty of overhead crane. The power supply is 3 phase and amperage depending on the duty and capacity of the overhead crane used. The electrical system consists of High tro reel bar or PVC Bus Bar or Powerail Enclosed Conductor Bar and Festoon System with Flat Cable attached to the bridge. The control of single girder crane is by pendant control or wireless remote control system. We have single girder overhead cranes ranges from 250 kg to 15000 kg with lifting height from 4 m to 18m with different overhead crane duties.

overhead cranes

Double Girder Overhead Crane

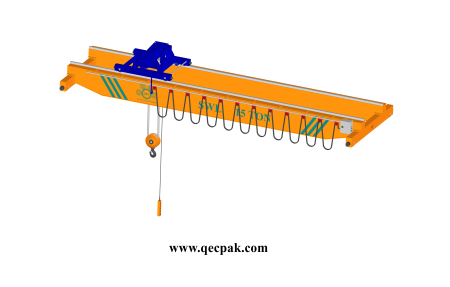

The double girder crane consists of two girders mounted on two or four end carriages depending upon the duty of the overhead crane. The end carriages are fitted with wheels that travel on the rail by LT motors or manual chain. The electric wire rope hoist or electric chain hoist or manual chain block is mounted on the trolley that travel on the upper sides of bridges on a square bar or rail. The power supply is 3 phase and amperage depending on the duty and capacity of the overhead crane used. The electrical system consists of High tro reel bar or PVC Bus Bar or Powerail Enclosed Conductor Bar and Festoon System with Flat Cable attached to the bridge. The control of double girder crane is by pendant control or wireless remote control system. We have single girder overhead crane ranges from 5000 kg to 250000 kg with lifting height from 4 m to 18m with different overhead crane duties.

overhead cranes

Gantry Overhead Crane | Goliath Overhead Crane

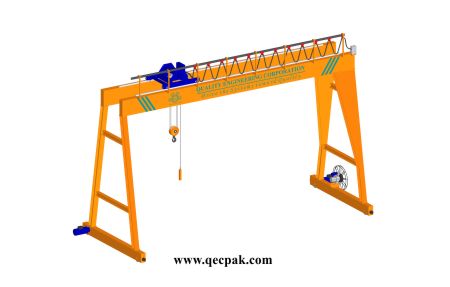

The gantry crane or goliath crane may be single girder or double girder depends upon the capacity and duty of the overhead crane. The gantry crane or goliath crane also are of portable type or manual gantry crane that operated on the industrial floor by rubber wheels. The bridge of gantry overhead crane installed on its four pillars and the pillars are attached with the end carriages that move with the bridge on the rail. The rail is fitted on the floor level. For double girder gantry crane the electric wire rope hoist or electric chain hoist or manual chain block is mounted on the trolley that travel on the upper sides of bridges on a square bar or rail. For single girder gantry crane the electric wire rope hoist or electric chain hoist or manual chain block is under hung on the bridge. The power supply is 3 phase and amperage depending on the duty and capacity of the overhead crane used. The electrical system consists of cable reeling drum and Festoon system with Flat Cable attached to the bridge. The control of gantry crane is by pendant control or wireless remote control system. We have different capacities of gantry overhead cranes ranges from 500 kg to 200000 kg with different overhead crane duties.

overhead cranes

Semi Gantry Overhead Crane | Semi Goliath Overhead Crane

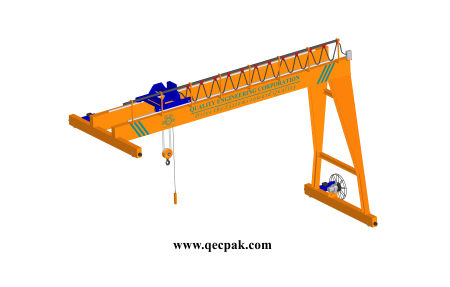

The semi gantry crane or semi goliath crane is a combination of both girder crane and gantry crane. One end carriage of the crane is move on the floor and other end carriage is move on the gantry bridge. The power supply is 3 phase and amperage depending on the duty and capacity of the overhead crane used. For double girder semi gantry crane the electric wire rope hoist or electric chain hoist or manual chain block is mounted on the trolley that travel on the upper sides of bridges on a square bar or rail. For single girder semi gantry crane the electric wire rope hoist or electric chain hoist or manual chain block is under hung on the bridge. The electrical system consists of cable reeling drum or High tro reel bar or PVC bus bar system and Festoon system with Flat Cable attached to the bridge. Any electrical system can be use for the long travel of the overhead crane. The control of semi gantry crane is by pendant control or wireless remote control system. We have different capacities of semi gantry overhead cranes ranges from 250 kg to 50000 kg with different overhead crane duties.

overhead cranes

Pillar Mounted Jib Crane

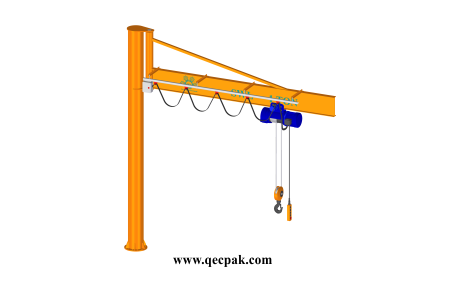

The pillar mounted jib crane is the form of cantilever beam system. The pillar mounted jib overhead crane installed on solid foundation design to bear the load of overhead crane. The jib crane is also called a slewing crane.The electric wire rope hoist or electric chain hoist or manual chain block is under hung on the bridge. The power supply is 3 phase and amperage depending on the duty and capacity of the overhead crane used. The electrical system consists of Festoon system with Flat Cable attached to the jib arm. The control of jib crane is by pendant control or wireless remote control system. We have different capacities of jib overhead crane range from 150 kg to 15000 kg that rotate about 360 to 180 Degree about it axis and arm length may be 2 m to 8 m with different overhead crane duties.

overhead cranes

Wall Mounted Jib Crane

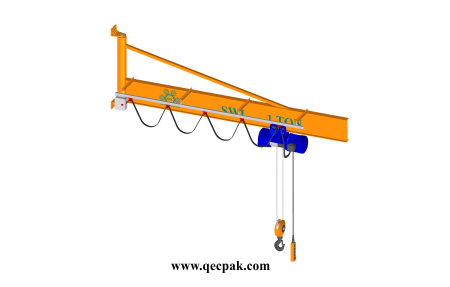

The wall mounted jib crane is the form of cantilever beam system. The wall mounted jib overhead crane installed on side wall or concrete column with bolts. The jib overhead crane is also called a slewing crane. The electric wire rope hoist or electric chain hoist or manual chain block is under hung on the bridge. The power supply is 3 phase and amperage depending on the duty and capacity of the overhead crane used. The electrical system consists of Festoon system with Flat Cable attached to the jib arm. The control of jib crane is by pendant control or wireless remote control system. We have different capacities of jib crane range from 150 kg to 15000 kg that rotate about 180 degree about it axis and arm length may be 2 m to 8 m with different overhead crane duties.

overhead cranes

Underhung Overhead Crane | Suspension Overhead Crane

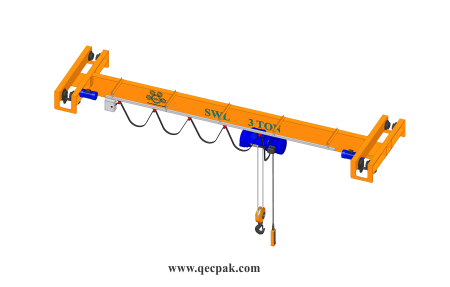

The underhung or suspension overhead crane consists of single girder fitted on two end carriages. The end carriages are fitted with wheels that are underhung on the side girders and move by electrical motors. The electric wire rope hoist or electric chain hoist or manual chain block is under hung on the bridge. The hoist reeving is 2/1 or 4/1 depending on the duty of overhead crane. The power supply is 3 phase and amperage depending on the duty and capacity of the overhead crane used. The electrical system consists of High tro reel bar or PVC Bus Bar or Powerail Enclosed Conductor Bar and Festoon System with Flat Cable attached to the bridge. The control of single girder crane is by pendant control or wireless remote control system. We have underhung or suspension overhead cranes ranges from 250 kg to 15000 kg with lifting height from 4 m to 18m with different overhead crane duties.

overhead cranes

Monorail Overhead Crane

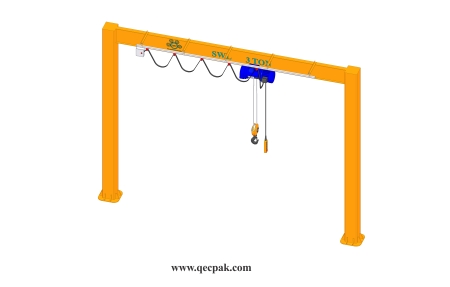

The monorail overhead crane consists of single girder fitted on two side columns or anchored on the ceiling or fitted on the side walls. The monorail may be curved track girder that installed on the steel structure shed or mounted on the ceiling by anchors. The electric wire rope hoist or electric chain hoist or manual chain block is installed on the monorail girder track. The special curved monorail hoist is used on the curved track girder. The hoist reeving is 2/1 or 4/1 depending on the duty of monorail overhead crane. The power supply is 3 phase & amperage depending on the duty and capacity of the overhead crane used. The electrical system consists of High tro reel bar or PVC Bus Bar or Powerail Enclosed Conductor Bar and Festoon System with Flat Cable attached to the bridge. The control of single girder crane is by pendant control or wireless remote control system. We have monorail overhead cranes ranges from 250 kg to 16000 kg with lifting height from 3 m to 18 m with different overhead crane duties.

overhead cranes

Free Standing Crane System and Curved Track Crane System

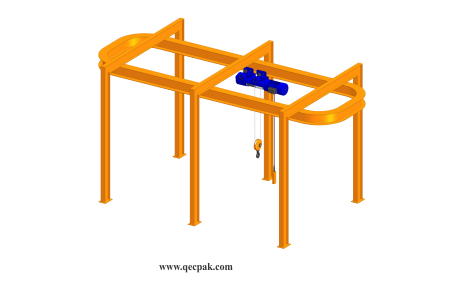

The free standing overhead crane consists of vertical columns on which overhead crane installed according to process requirements. The curved track girder, single girder and underhung crane are mostly installed on this system. The special curved monorail hoist is used on the curved track girder. The curved monorail hoist reeving is 2/1 or 4/1 depending on the duty of curved track overhead crane. The power supply is 3 phase & amperage depending on the duty and capacity of the curved track overhead crane used. The electrical system consists of curved High tro reel bar or curved PVC Bus Bar or curved Powerail Enclosed Conductor Bar and curved Festoon System with Flat Cable attached to the curved track overhead crane. The control of single girder crane is by pendant control or wireless remote control system. We have free standing overhead cranes ranges from 250 kg to 15000 kg with lifting height from 3 m to 5m.

overhead cranes

Overhead Crane Electrical and Mechanical Components

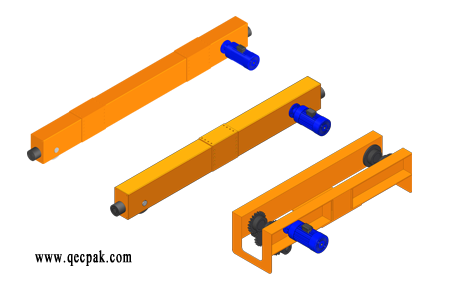

We provide overhead crane components Such as Electrical Wire rope hoist, Electrical Chain Hoist, Electrical Winches, Manual Chain Blocks, Manual trolleys, End Carriages, End Carriage Wheels, Wire ropes, Chains, Hoist Rope Guides, Crane Brakes and Crane hooks.

Electrical components such as End Carriage Motors, Control Panels, Festoon system, bus bar, 3 or 4 Cores Electrical Cables, Pendant switches, Remote Control Pendants, Limit Switches and connectors.



Overhead Crane Lifting attachments

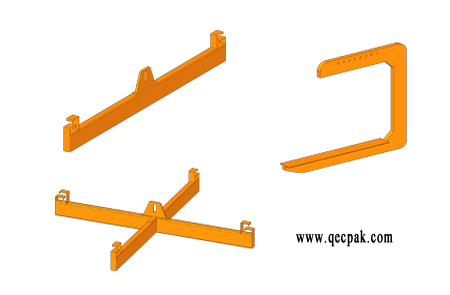

We provide overhead crane Lifting Attachments Such as Spreader beam, bag lifter, drum lifter and tilters, coil lifting attachment, paper reel lifting and tilting, fork lifter attachments, Wire Rope Slings, Chain slings, Belt Slings, hooks, D shackles, Eyebolts, Swivel Eyebolts, O-Rings and crane hooks.





Data Required for Quotation Preparation.

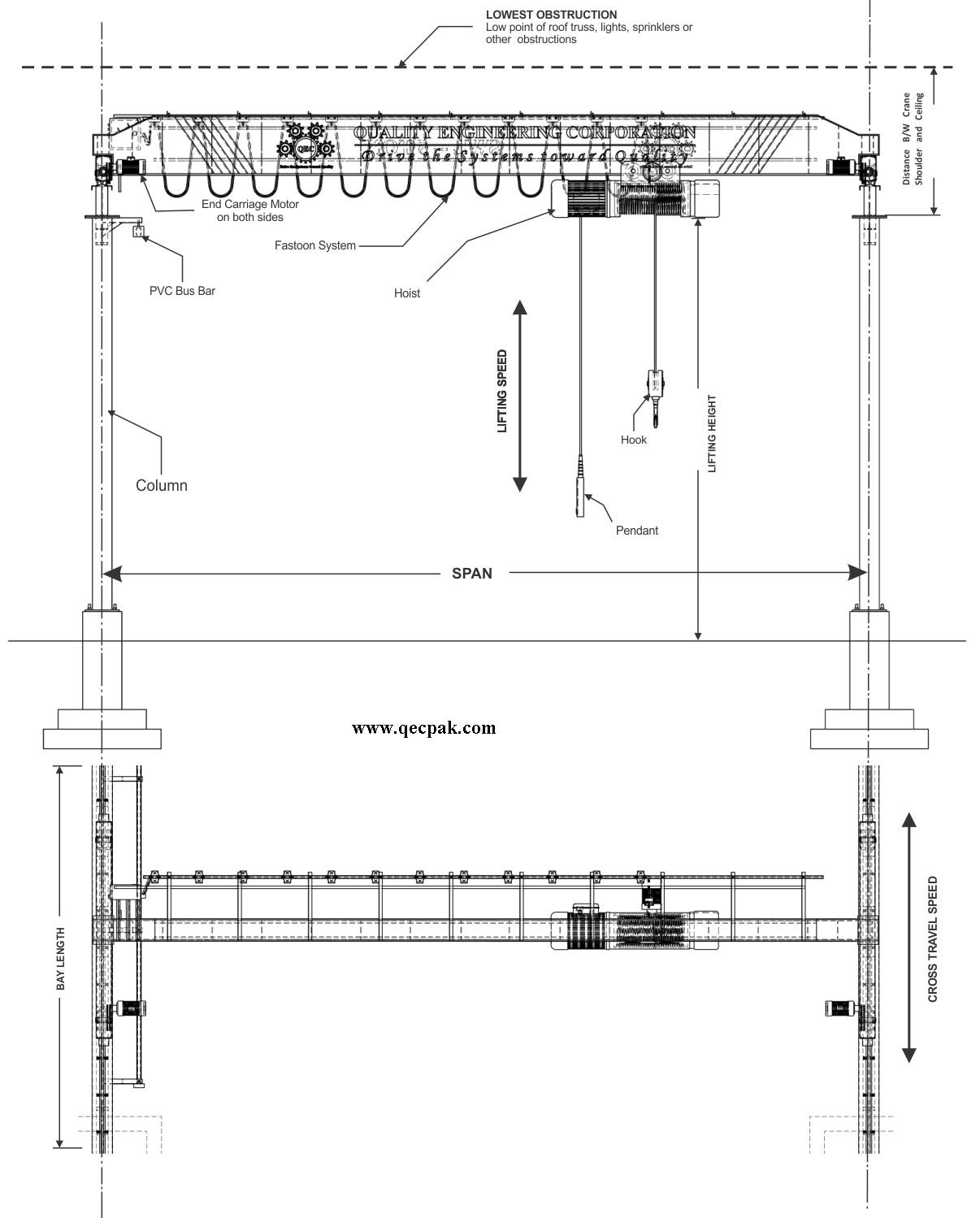

1 - Lifting Height of overhead crane overhead cranes drawing
2 - Lifting Weight of overhead crane
3 - Overhead crane Span
4 - Overhead crane Bay Length
5 - Overhead crane Lifting Speed
6 - Overhead crane Cross Travel or Overhead crane bridge speed
7 - Operation time/day or Working hour per day for overhead crane
8 - surrounding temperature for overhead crane
9- Explosion Proof Hoists/ Simple Hoist for overhead crane
10 - Single speed or Double speed Hoist & Bridge Motors for overhead crane
11 - Distance between overhead crane shoulder and the ceiling
12 - Soft starter required in the Control Panel / NA
13 - Overhead crane working area Layout Drawing (if have any)
14 - Facility electrical Supply & Wire Construction ( 1 phase or 3 phase)for overhead crane
  Note: If you don't know about any speeds we can provide you the standard speeds of overhead crane according to your process requirements on request. Click here to Enlarge Image
